- Technology: fiber laser
- Machining area: 4000mm*2000mm
- X-axis stroke: 2025mm
- Y-axis stroke: 4065mm
- Z-axis stroke: 270mm
- Positioning precision of X/Y axis: ±0.03mm/m
- Repetitive positioning precision of X/Y axis: ±0.03mm
- Maximum speed: 183m/min
- Maximum accelerated speed: 2.0G
- Net Weight: 18000Kg
- Maximum load of workbench: 1400kg
- Machine overall dimensions (length*width*height): 11500×3500×2500mm
- Number of phases: 3
- Rated voltage of power source: 380V
- Frequency: 50Hz
- Protection rating of main power: IP54

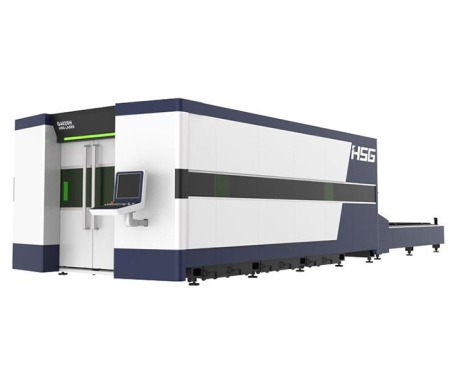

HS-G4020H Fibre Laser Cutting Machine
The mechanical structure adopts gantry type, stable performance and stable operation of the equipment. This model adopts AC servo motor drive system. The machine movement mechanism adopts gear and rack double drive to ensure high speed, high precision and high reliability of the equipment. High-quality, high-efficiency fiber laser resonator, low processing costs, energy saving & environmental-friendly.
