HSG R1 Technical Parameters
| Model | R1 |
| Power | 1500-3000W |
| X/Y-axis Positioning Accuracy | ±0.05mm/m |
| Cutting Capacity of Round Tube | Φ8-Φ120mm |
| Cutting Capacity of Square Tube | □8*8-□120*120mm |
| Weight of Single Tube | ≈50kg |
HSG R1 Fibre Laser
More information about
High-speed Tiny Tube Laser Cutting Machine
- The HSG R1 has a power between 1500W and 3000W
The specification for each fibre laser machine can be found in the specification tab below.
HSG R1 Fibre Laser
Follow-up Support for High Precision
The machine bed is equipped with highly sensitive and independent servo follow-up support to achieve high cutting accuracy.
Efficient Multi-mode Loading
- R1 Series matches with automatic material racks to achieve loading material in 20s
- Automatic material racks can support tubes with 20mm-120mm diameter and 4m-6.5m length
- Automatic material rack is compatible with semi-automatic loading mode
Chuck Jumping for Short Tailings
- R1 Series can shorten the large amplitude of tailing length through chuck jumping
- Jumping type ensures the cutting accuracy of long tubes by chuck displacement
- Optional servo chuck jumping can finish chuck jumping action accurately and efficiently

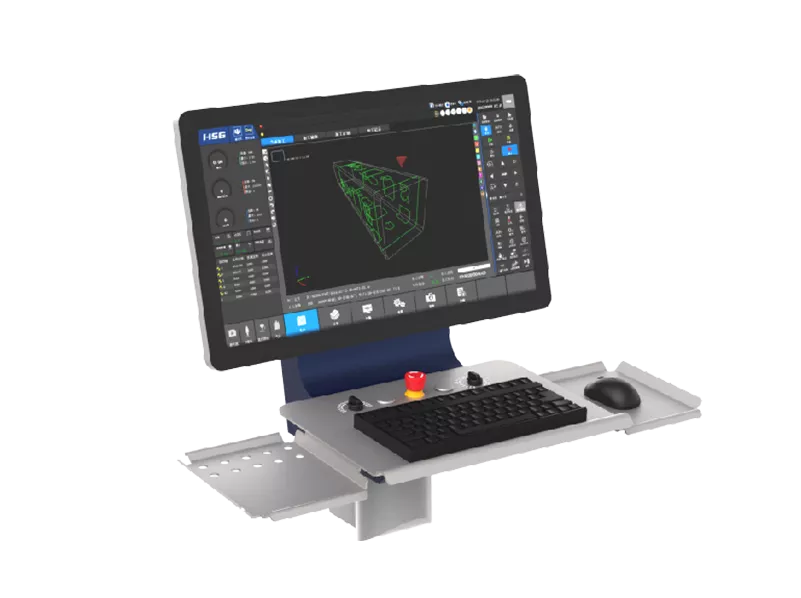

Intelligent Bus Operating System
- Various auxiliary functions of tube laser cutting machines to satisfy multiple processing demand
- R1 series is equipped with professional nesting software to achieve efficient management of production progress and price calculations
